20ACH 2412 Deluxe Portable Heat Pump and Spot Cooler - 2 Ton

WARRANTY

All OceanAire products are covered by the OceanAire Limited Warranty; 1 year on the full product
plus, 4 additional years for the compressor (restrictions apply).

Register Product

Commercial and Industrial Air Conditioning Units Made in the USA

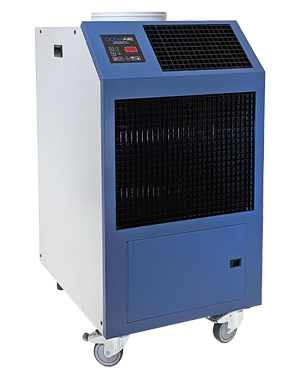

20ACH2412 Deluxe Portable Heat Pump and Spot Cooling Air Conditioner

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

  • Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
  • Heating Capacity is total BTUH at 70ºDB/60ºWB indoor, 47ºDB/43ºWB Outdoor
  • Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
  • EER is determined at high fan speed, with condenser discharge air ducted into another area
  • CFM with free discharge
  • Amps & Watts at 208 Volts

COOLING AMBIENT OPERATING RANGE 65º TO 105º
HEATING AMBIENT OPERATING RANGE 40º TO 85º

NOT APPROVED FOR OUTDOOR USE

Print PDF
COOLING CAPACITY24,020 BTUH
HEATING CAPACITY22,000 BTUH
VOLTAGE208-230 V, 60 Hz, Single Phase
AMPS14.9 A
WATTS2700 W
IN RUSH AMPS68 A
EER8.9
COMPRESSOR TYPEROTARY
COMPRESSOR MOTOR2 HP
COMPRESSOR RLA10.5 A
COMPRESSOR LRA48 A
EVAPORATOR BLOWERCENTRIFUGAL
EVAP CFM - HIGH810
EVAP MOTOR HP1/3 HP
CONDENSER BLOWERCENTRIFUGAL
COND CFM1010
COND MOTOR HP1/3 HP
POWER CORD14/3
PLUG TYPE6-20P, LCDI
CORD LENGTH10 FT
CONDENSATE REMOVALTANK
SIZE5 GALLON
REFRIGERANT CHARGE37 OZ., R-410A
HEIGHT W/ CASTERS45-3/4 in
HEIGHT W/O CASTERS40-1/2 in
WIDTH24 in
DEPTH30 in
NET WEIGHT260 lb.
  • SOLID STATE ELECTRONIC CONTROLLER WITH AUTOMATIC MODE CHANGEOVER
  • AUTOMATIC 6-SPEED FAN CONTROL WITH MANUAL OVERRIDE
  • LARGE LED DISPLAY
  • SWIVEL BALL BEARING CASTERS WITH LOCKS AT FRONT
  • CONDENSATE TANK ALERT
  • LCDI POWER CORD
  • HIGH PRESSURE SAFETY SWITCH
  • WASHABLE ELECTROSTATIC AIR FILTERS
